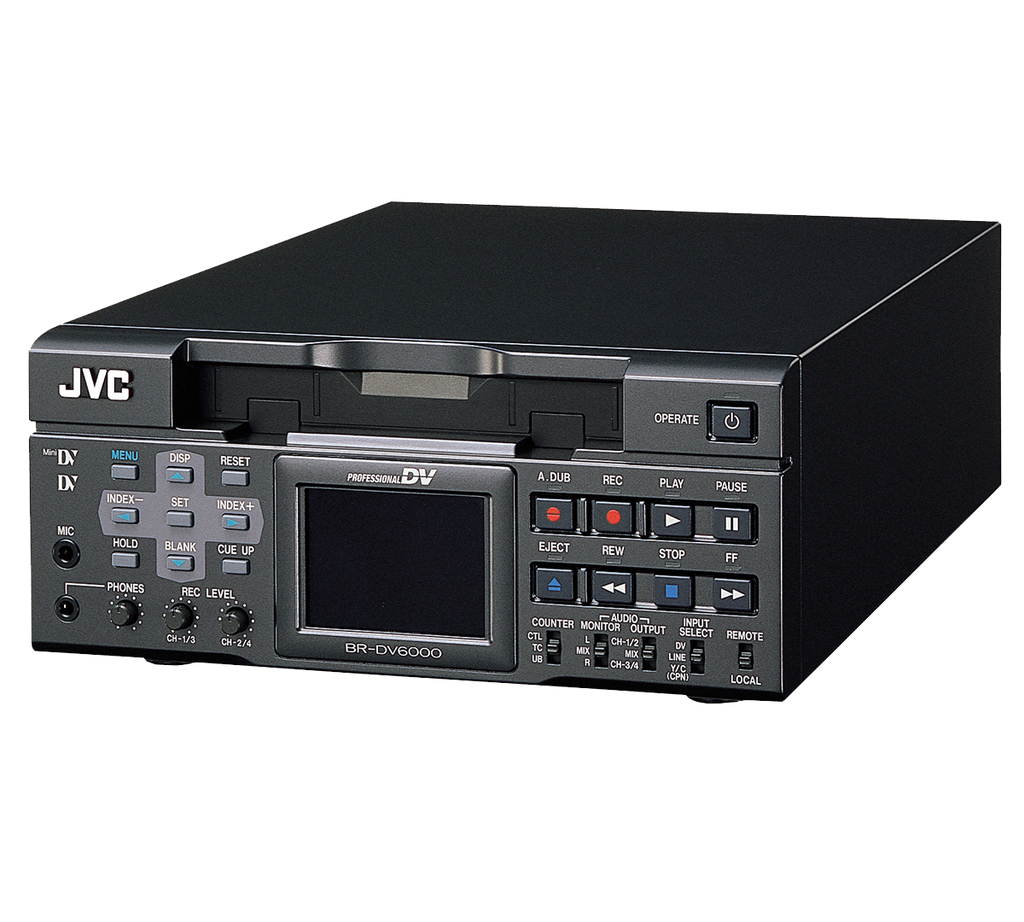

Move your mouse over image or click to enlarge

JVC DV VTR - Professional DV VTR - JVC BR-DV6000U

$ 989.99



Designed specifically to work in Non-Linear edit suites, the BR-DV6000U is an ideal player, recorder, editor machine with a variety of interfaces. With its optional RS-232C connection, it can even be controlled by computer for web streaming. Compact design, long tape lengths, and a wide range of options make the BR-DV6000U a good choice for a professional studio.

Component In and Out for Betacam Studio Integration

Analog component connections are the high quality standard for most professional analog systems. The BR-DV6000U gives you 3-BNC input and output. S-Video is connected via 4-pin and Composite Video via BNC. With all these options, you can work with video sources from just about any format, old or new.

RS-422 Control and Basic Edit Functions

Lots of people still edit from tape to tape. For frame accuracy, the RS-422 control interface was developed. The BR-DV6000U can be used as a linear edit machine in the traditional way. Additionally, the deck has basic editing functions built-in. Video and audio insert editing and assemble editing are available. The audio dub function allows you to add a new sound track to the channel 3 or 4 channels without affecting either the original video or channel 1 and 2 audio tracks.

The BR-DV6000U integrates into existing EDIT-DESK (a JVC linear edit system) with a JVC proprietary connector. You can connect the machine to the RM-G800 remote controller.

DVCAM Playback

JVC asserts that the BR-DV6000U will playback professional DVCAM recorded tapes. Now you won't have to buy or rent expensive equipment to integrate DVCAM source material to your project for editing.

SMPTE Time Code for Frame Accuracy

The BR-DV6000U has a time code reader/generator along with BNC connectors for time code in and out. The machine provides a full range of time code options including Preset, Rec-run, Free-run and Re-Gen settings.

2.5 Inch Color LCD Monitor

The high-resolution LCD monitor on the front panel provides monitoring and editing convenience. Time code, audio levels and menu settings can be overlayed on the video display.

Extensive Optional Features for Your Individual Requirements

The BR-DV6000U deck offers optional XLR audio connections. The SA-X61 and SA-X62 gives you XLR input and output respectively. The optional SA-K46 allows you to control the unit from a PC with RS-232C. The SA-DV6000 option gives you network connectivity. You can control the unit from a wired or wireless LAN (local area network). This feature allows for real time MPEG4 streaming.

PAL / NTSC Playback Capability

Both NTSC and PAL signals can be recorded from that system's elements and played back in that system. This makes it easy to work with international material and transfer to a non-linear editing system for editing. When either system is input via the DV input both systems can be recorded in either NTSC or PAL system. Analog inputs do not allow for conversion.

Signal System NTSC and PAL Systems
Format DV
8-Bit, 4:1:1 Sampling, 5:1 Compression, 25mb/sec.
Large and Small Cassettes
Tape Speed 18.812 mm / sec.
Signal-to-Noise Ratio 55 dB
Maximum Record Time 276 Minutes (Large Cassette)
63 Minutes (Small Cassette)
Audio Signal Format 16 bit / 48kHz 2 Channel Mode
12 bit / 32kHz 4 Channel Mode
Frequency Response 20Hz to 20kHz (16 bit mode)
Input & Output Connections SDI Video+Audio- BNC (x 1 with optional SA-X65U)
Fire Wire- 4-Pin (x 1 input and output both)
Analog Component Video- 3-BNC (x 1 input, 1 output)
S-Video- 4-Pin (x 1 input 1 output)
Composite Video- BNC (x 1 input, 2 output)
Sync- BNC (x 1 input)
Time Code- BNC (x 1 input, 1 output)
Line Audio- RCA (x 2 input, 2 output)
Balanced Audio- XLR (x 2 input with optional SA-X61U)
Balanced Audio- XLR (x 2 output with optional SA-X62U)
(Only 1 XLR Board Can Be Used At One Time)
AES/EBU Audio- BNC (x 1 output optional with SA-X65U)
Audio Monitor- RCA (x 1 output)
Microphone- Stereo Mini (x 1 Input)
Headphone- Stereo Mini (x 1 output)
Remote Control- RS-422A 9-Pin (x 1)
Remote Control- RS-232C 9-Pin (x 1 with optional SA-K46U)
(Replaces RS-422A Connector Module)
Remote Control- 12-Pin for RM-G800 (x 1)
GPI- Proprietary (x 1 input, 1 loop output for Foot Switch)
Network Interface- RJ-45 (x 1 with optional SA-DV6000U)
Power Requirements 12 Volts DC
Power Consumption 38 Watts
Operating Temperature 32° to 104° F
0° to 40° C
Dimensions (W x H x D) 8.4 x 3.5 x 12.8 Inches
212 x 88 x 327 mm
Weight 9.9 Lbs.
4.5 kg
