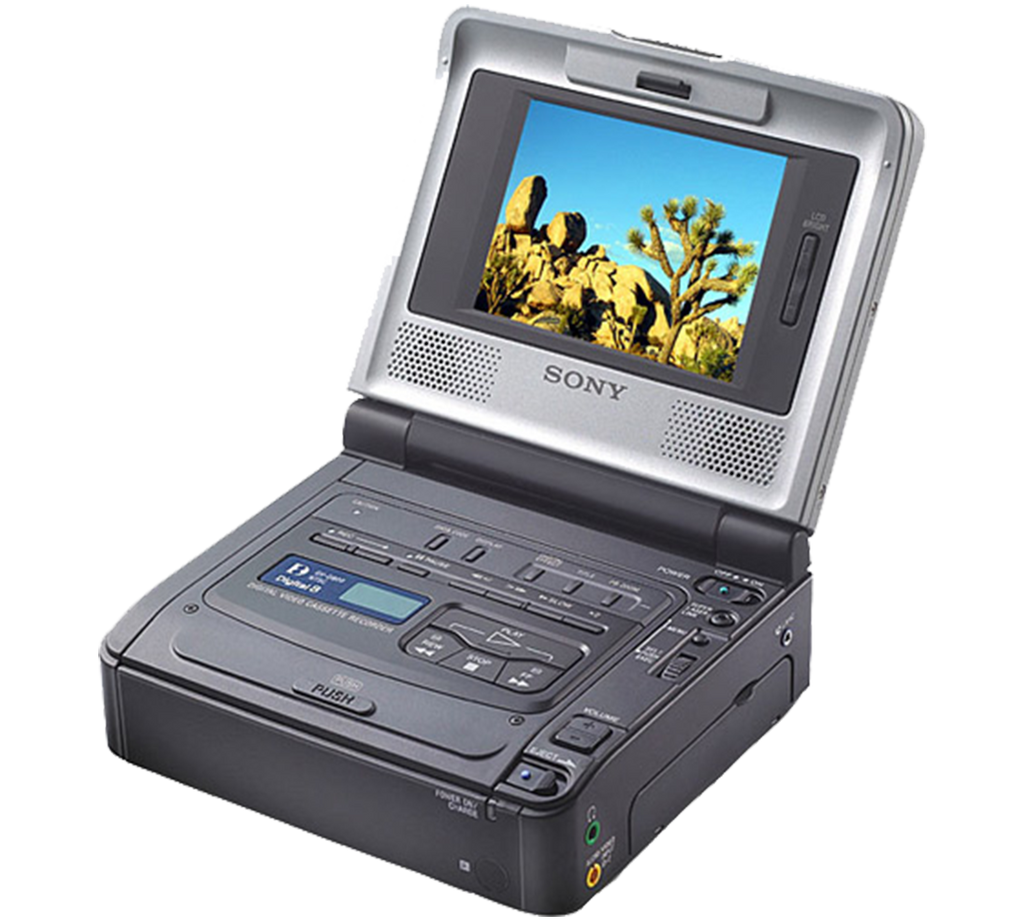

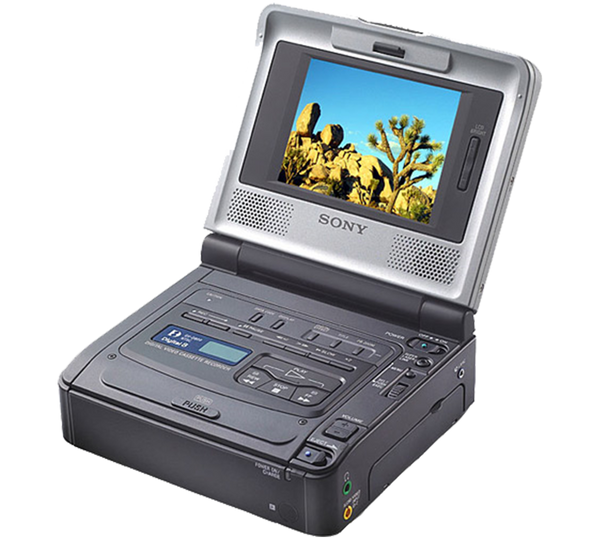

Sony Video Walkman VCR - PAL Signal - Digital8 - Sony GV-D800E
The Sony GV-D800E, the PAL version of the Sony GV-D800, is a compact and portable Digital 8 Video Walkman for playing, recording and editing your footage and offers 20 segment Assemble Editing, using Infrared signals that are compatible with a wide array of consumer camcorders and VCRs, as well as LaserLink IFT-R20 Wireless Transmitter System, SP and LP Record/Playback speeds, i.LINK DV Interface (IEEE-1394), 16-bit or 12-bit PCM Audio, Frame Advance, crystal clear Still and Slow Motion, Index Titler and Time Code. The GVD-800 is a backward compatible VCR that allows the Hi-8 and 8mm tape playback, incorporates a active matrix 4" color LCD monitor.
Digital-8 Video Recording
Records digital Video and Audio on a standard 8mm or Hi-8 tape, The Digital-8 technology delivers a richer and more accurate picture quality than the analog 8mm or Hi-8 format. With the Digital-8 format Sony's strategy is to ease the video transition from analog to digital by increasing the capabilities of the 8mm/Hi-8 tape format, The main benefits of the Digital-8 recording is the Digital picture with PCM Sound quality.
PCM Stereo Audio
Pulse Code Modulation (PCM) recording for an incredible 96db dynamic range.
The Digital-8 provides two audio recording modes 12 and 16 bit. 12 bit creates two sets of stereo tracks, and 16 bit mode offers one pair of stereo tracks.
i.Link DV Interface: (IEEE-1394)
The i.Link DV In/Out interface (IEEE-1394) provides a high-speed, bi-directional digital link between camcorders or VCR's for digital to digital editing, which delivers unmatched versatility and performance.
In addition to DV Interface, they feature Composite (RCA) and S-Video input and output for compatibility with Analog equipment. A headphone jack is included, as well.
Index Titler lets you create custom titles (22 characters), 2 sizes, 7 colors, 9 positions, or 8 preset titles (Happy Birthday etc.)
The built in Assemble Editor lets you mark cut in and cutout points for up to 20 separate scenes. Use the Video Walkman as your source VCR, while controlling almost any remote capable camcorder or VCR, via Infrared as your recorder. To use the Video Walkman as your recorder.
Incorporates a 4" color LCD screen with Active Matrix technology to provide clear, accurate colors for on the spot Playback of recordings.
2X Playback and Playback Zoom
2X playback zoom allows for high speed playback in forward and reverse, and playback zoom enables you to zoom into selected areas of the video for a superb editing option.
Digital Noise Reduction
When recording, this automatic circuit helps to reduce chromatic noise by up to 20 percent.
Time Based Correction (TBC)
By replacing the video signal with a clear sync pulse, timing errors that are commonly seen as jitter in home videos are corrected.
Control L (Lanc)
Connects camcorders, VCR's and editing controllers for precise control and ease of use during editing or dubbing.
Record: Digital 8
Playback: Digital 8, Hi-8, and 8mm
|Number Of Heads||2 heads|
|Flying Erase Head||No|
|Synchro Edit||With Control-L (Lanc)|
|Control Protocol||With Control-L (Lanc)|
|Time Base Corrector (TBC)||Yes|
|Dig. Noise Reduction (DNR)||Yes|
|Cable Box Control||No|
|Program Timer Recording||No|
|Auto Head Cleaner||No|
Video / Audio
1 x S-Video
1 x Mini A/V (With Mini-RCA)
1 x IEEE-1394 (FireWire-DV) 4 Pin
1 x S-Video
1x A/V RCA
1x IEEE-1394 (FireWire-DV) 4 Pin
PCM Digital Stereo 12 bit 32 kHz/4ch, 16 bit 48 kHz/2ch
|Audio Level Meter||
|Manual Audio Level Control||
|23 Watts, 100-240 Volts, 50/60 Hz|
|5 7/8" x 2 5/8" x 5 3/8"|
|2 lbs 1 oz.|
Digital Program Editing
Playback with Zoom
Built In Titler
Super Laser Link
Tape Counter Indicator.
