• JVC PAL VCR - PAL Signal S-VHS / VHS VCR - JVC HR-S7500EK
JVC PAL VCR - PAL Signal S-VHS / VHS VCR - JVC HR-S7500EK
Move your mouse over image or click to enlarge

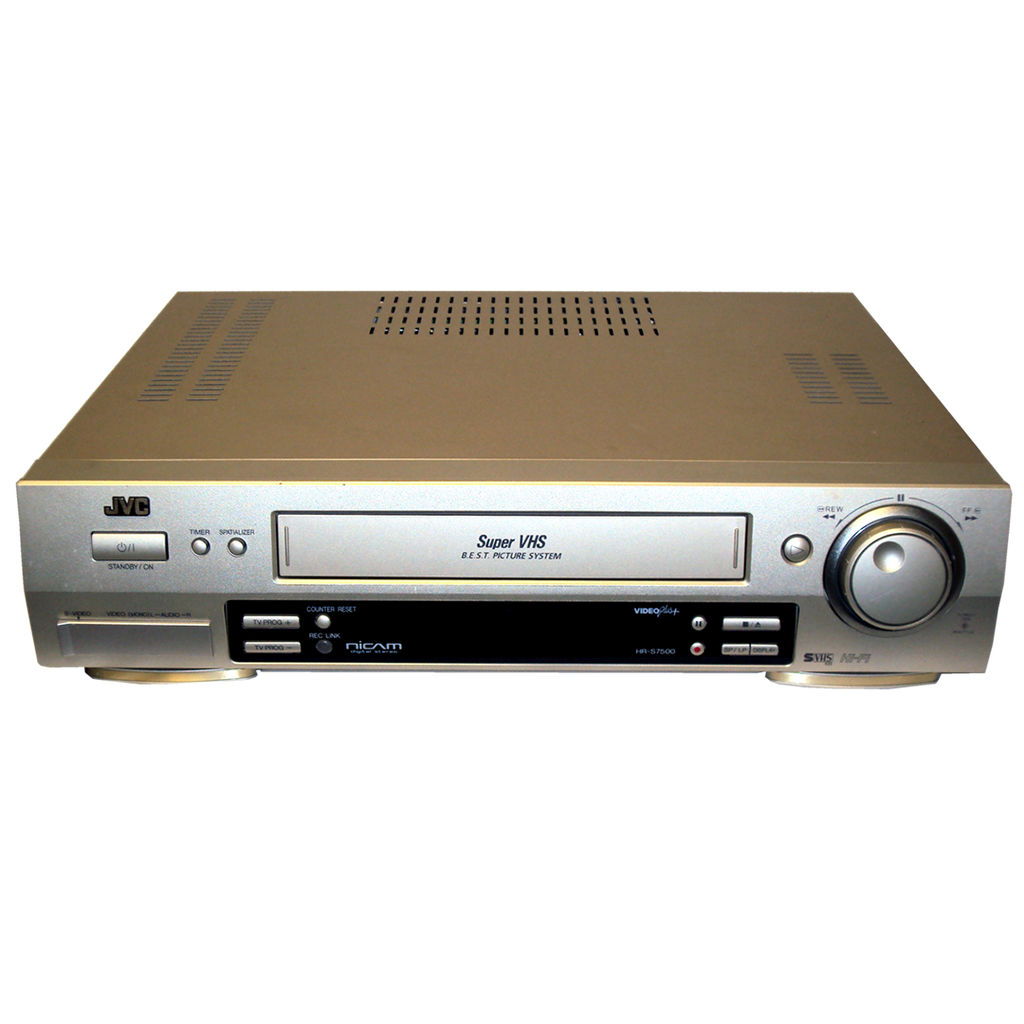

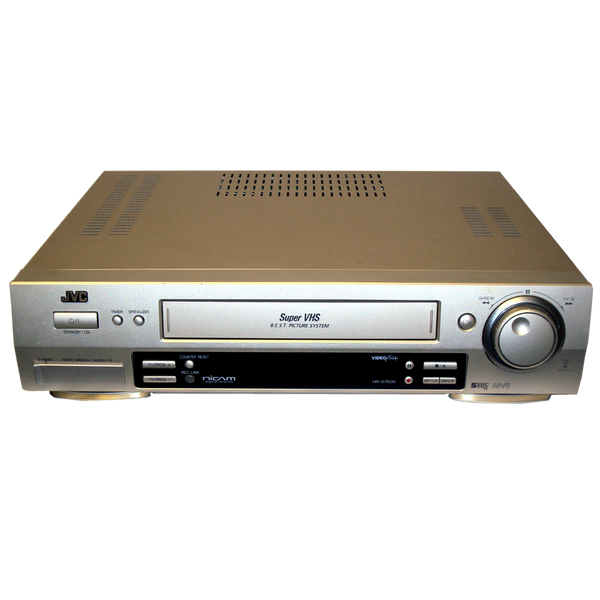

JVC PAL VCR - PAL Signal S-VHS / VHS VCR - JVC HR-S7500EK

$ 989.99

Quantity

Details

The JVC HR-S7500EK takes Super VHS picture quality to the next level with the Digi Pure system. It uses a 3-Dimensional Digital Circuit with a 2MB Digital Frame Memory as a foundation for a variety of picture enhancement technologies.

VCR

Format

S-VHS / VHS PAL Standard

Signal System

PAL-type colour signal and CCIR monochrome signal,

625 lines / 50 fields

Recording System

DA4 (Double Azimuth) helical scan system

Maximum Recording Time

SP:

240 min. with E-240 video cassette

LP:

480 min. with E-240 video cassette

Signal-to-Noise Ratio

45 dB

Horizontal Resolution

250 lines (VHS)

400 lines (S-VHS)

Frequency Range

70 Hz to 10,000 Hz (Normal audio)

20 Hz to 20,000 Hz (Hi-Fi audio)

Input / Output

21-pin scart connectors

IN/OUT x 1

IN x 1

RCA connectors

VIDEO IN x 1

AUDIO IN x 1

AUDIO OUT x 1

S-Video connectors

IN x 1

OUT x 1

Tuner / Timer
TV Channel Storage Capacity 99 positions (+AUX positions)
Tuning System Frequency synthesized tuner
Channel Coverage UHF Channels 21 - 69    (470 - 862 MHz)
Aerial Ouput UHF Channels 21 - 69    (Adjustable)
Memory Backup Time Approx. 10 min.

General

Power Requirement

AC 220-240 V, 50/60 Hz

Power Consumption

Power On: 26 W

Power Off: 5.5 W

Operating Temperature

5°C - 40°C (41°F - 104°F)

Storage Temperature

-20°C - 60°C (-4°F - 140°F)

Operating Position

Horizontal Only

Weight

3.8 kg (8.4 lbs.)

Dimensions

400 X 94 X 347 mm

15.8" (W) x 3.7" (H) x 13.7" (D)
