Teac V-800G-F Hi8 Aviation Cassette Recorder
Move your mouse over image or click to enlarge

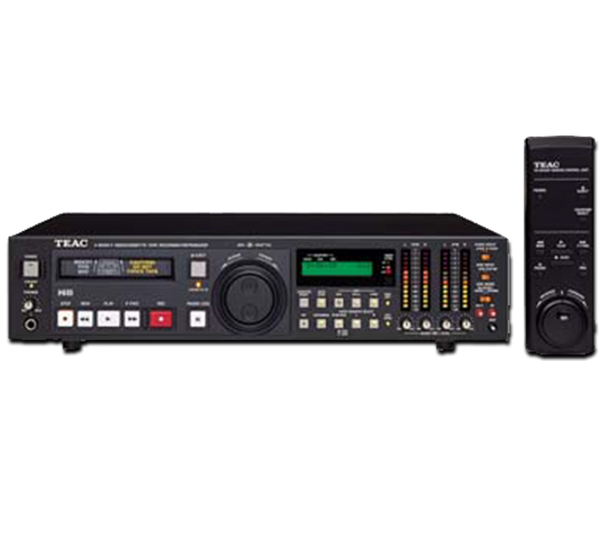

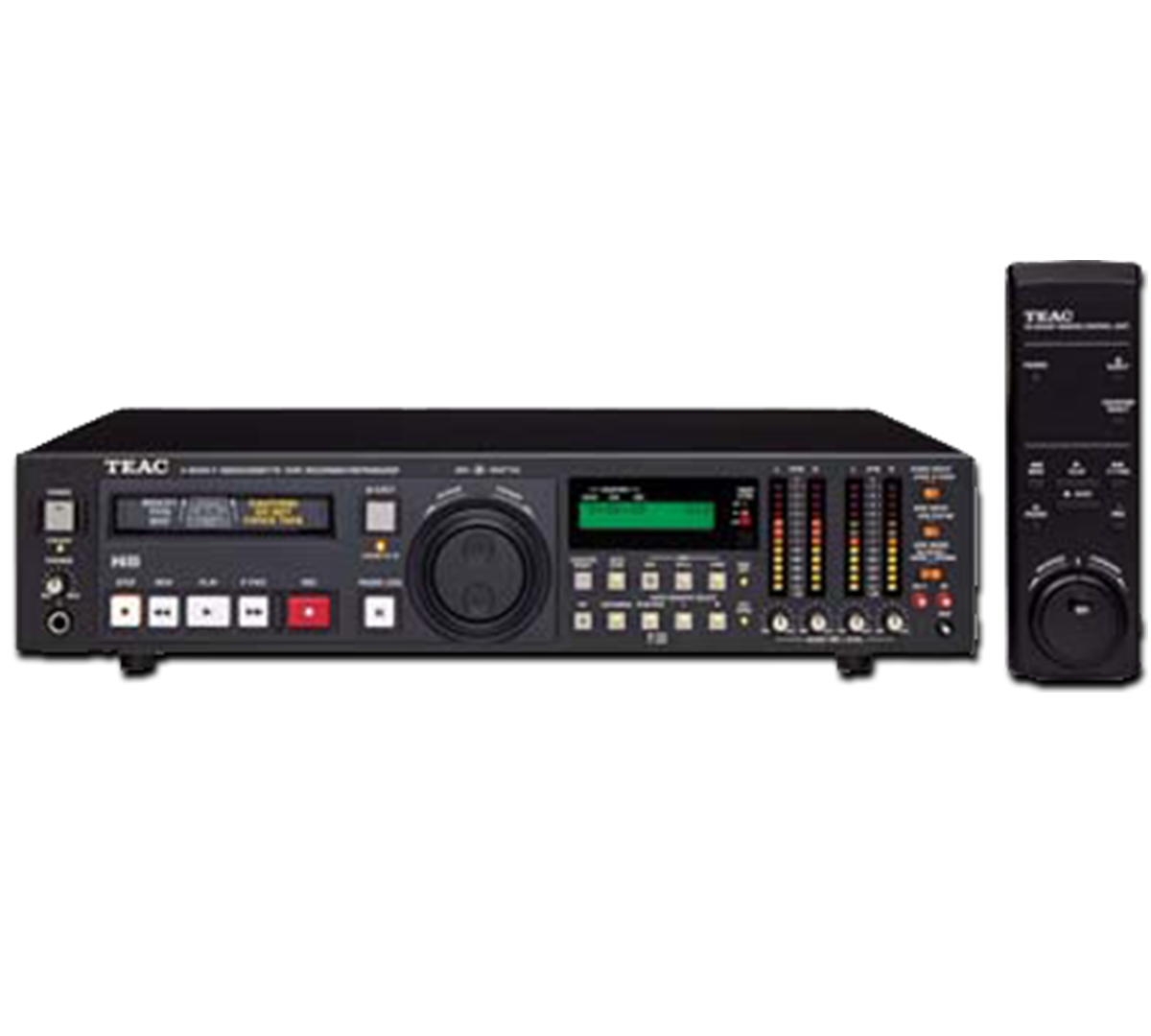

Teac V-800G-F Hi8 Aviation Cassette Recorder

$ 2,699.99

Quantity

Details

TEAC introduces the V-800G-F video Hi-8 Recorder/Reproducer to its professional Hi-8 product line serving production, studio, airline and military applications.

For military users, the V-800G-F can search for and detect and Event Mark signal recorded by TEAC's Airborne Video Recorder (AVTR's). The optional MC-1000G remote interface card enables the V-800G-F to be remotely controlled by TEAC debriefing system synchronization controllers. Optional rear mounting rails are also available which fit into standard EIA2U mounting locations.

SYSTEM
Video Record/Playback System Rotary 2 Head, Helical-Scan FM
Video Signal NTSC Color Signal
Cassette Insertion Front Loading
Audio Record/Playback System Rotary Head
AFM: Monaural, Stereo, Billingual
PCM: 2 Channel (1 CH/L, 2CH/R)
Usable Casette 8mm Format (all formats)
Tape Speed 14.3mm/s
Recording/Playback Time 2 Hours (SP Mode w/P6-120 tape)
FF / REW Time Approx. 4 minutes (w/P6-120 tape)
Shuttle Speed 15 times of normal speed (by shuffle dial)
25 times of normal speed (by serial interface control)
IR Remote Control Function Corresponding to TEAC Format
GENERAL
Power Requirement AC100V-240V, 50/60Hz
AC Inlet 3P IEC TYPE
AC Outlet Total 400W max. (Unswitched), 3P IEC TYPE
Power Consumption 25W
Operating Temperature 5 to 40 Centigrade (41 to 104 Fahrenheit)
Storage Temperature -20 to 60 Centigrade (-4 to 140 Fahrenheit)
Dimensions 16.93 X 3.47 X 14.06 inches / 430 X 88 X 357 mm
(W X H X D), w/o Rack Mount Adapter
Weight 17.6 lbs. / 8kg
Safety Specifications UL1492, CSA C22.2 No.1 IEC60065, EN60065
EMI/EMC Specifications FCC Part 15 Class A, IC Class A, EN55103-1, EN55103-2
INPUTS AND OUTPUTS
Video Input BNC Connector 1
Input Signal 1.0Vp-p, 75ohm, Unbalanced, Sync Negative
S Video Input 4 pin Mini-DIN Connector (1)
Liminance Signal 1.0Vp-p, 75ohm Unbalanced, Sync Negative
Chrominance Signal 0.286Vp-p, 75ohm, Unbalanced
Video Output BNC Connector (1)
Output Signal 1.0Vp-p, 75ohm, Unbalanced, Sync Negative
S Video Output 4 pin Mini-DIN Connector (1)
Liminance Signal
Chrominance Signal
1.0Vp-p, 75ohm, Unbalanced, Sync Negative
Horizontal Resolution 8mm: 240 Line (SP Color Mode)
Hi-8: 400 Line (SP Color Mode)
Video S/N 45dB or more (Color Mode)
Audio Input PCM PIN Jack (2)
AFM PIN Jack (2)
Input Level -7.5dBs (0 dBs=0.775Vrms)
Input Impedence 47k ohm or more

Audio Output PCM PIN Jack (2)
AFM PIN Jack(2)
Output Level -7.5dBs (w/47K ohm load)
Output Impedance 2.2K ohm or less
Frequency Response AFM: 50Hz to 15KHz
PCM: 20Hz to 15Hz
Audio S/N PCM 60dB or more
AFM 40dB or more
Headphone Output Stereo Phone Jack
EXT Sync Input Use Video-In signal on BNC Connector for EXT Sync
Control P Input Pin Jack (1)
Input Impedence 47K ohm
Control P Output Pin Jack (1)
