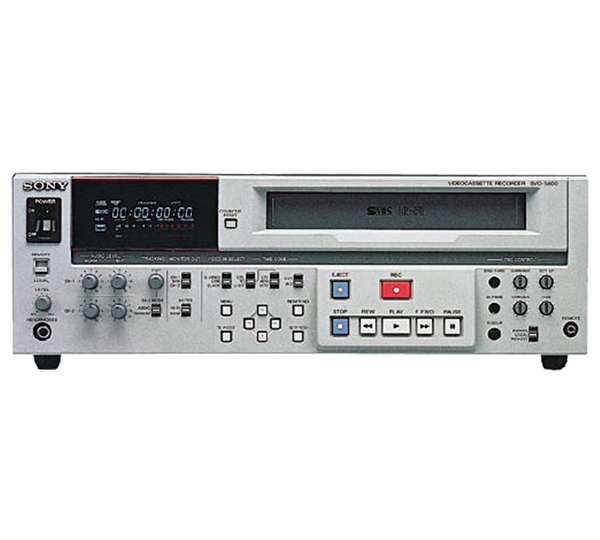

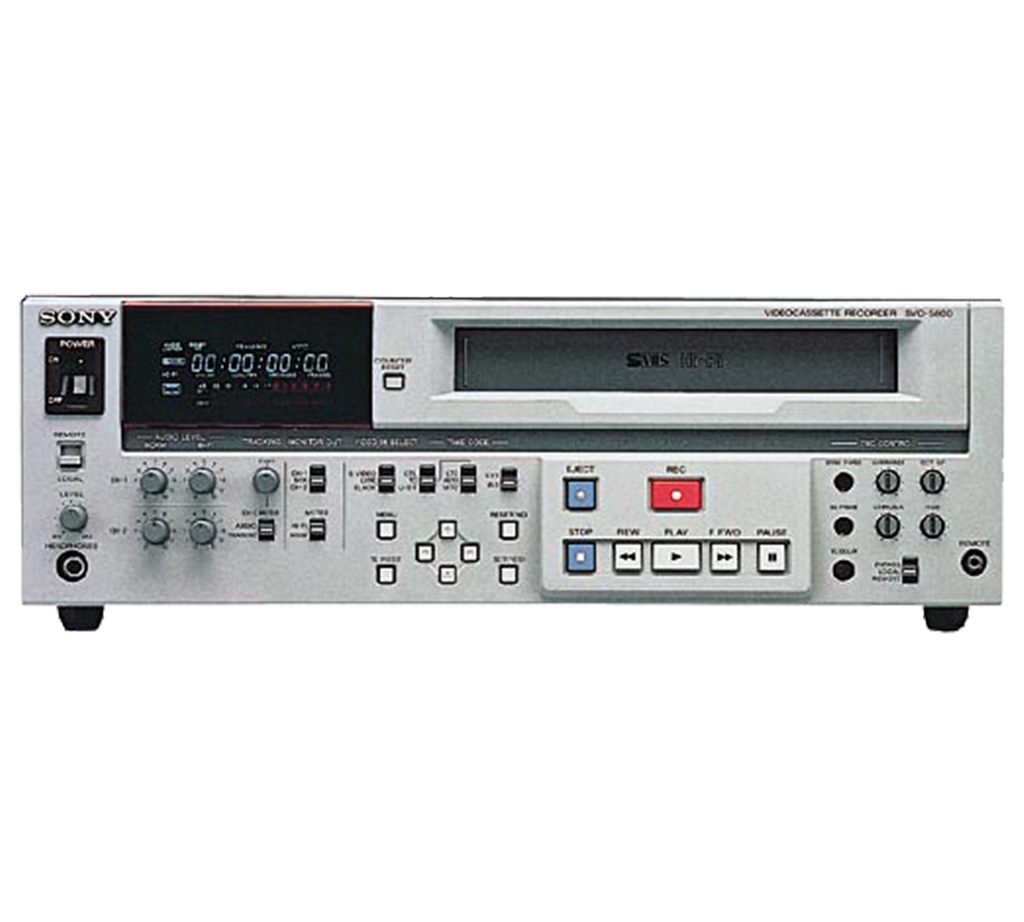

Sony SVO-5800 S-VHS Editor VTR
Move your mouse over image or click to enlarge

Sony SVO-5800 S-VHS Editor VTR

$ 1,789.99

Quantity

Details

Combining a host of advanced features and outstanding value, the Sony SVO-5800 is a powerful tool that will complement any professional editing environment, from a basic two-machine editing system to a sophisticated A/B roll editing suite. This professional S-VHS editing recorder/player is the result of Sony's accumulated experience and commitment to the development of editing recorders. The SVO5800 model offers all the convenient operating features required for professional editing in the S-VHS format: frame accurate assemble/insert editing, built-in time base corrector, built-in LTC/VITC time code generator/reader and user-friendly menu operation. An RS-422A interface port is also provided for versatile editing system expansion and flexible system control. The optional Component Out capability allows easy integration into Betacam SP-based editing systems.

  • Built-in Time Base Corrector
  • Chroma Process Improvement
  • Digital 3-line Comb Filter
  • Four Channel Audio Recording System
  • Full Editing Functions
  • Built-in SMPTE Time Code Generator and Reader
  • Component Video Signal Output
  • A TBC will eliminate VTR jitter and provide the proper adjustment of phase difference in such applications as A/B roll editing. With 4 fsc sampling and 8-bit quantization, this TBC offers superior picture quality without any additional time base correction. A separate Digital Noise Reducer for both Y and C signals minimizes noise during playback. Field memory enables a Digital Field Dropout Compensator to be included, which replaces a signal dropout with information from the previous field.
  • Achieves excellent color picture quality in the playback mode. This makes a chroma edge sharper and greatly improves the chroma bandwidth, thus enabling sharper and clearer color picture reproduction.
  • Obtains highly accurate Y/C separation from composite signals by using an advanced correlation technique. This provides remarkably high picture quality by reducing cross color interference.
  • Allows the ability to cater to a wide range of applications. Two channels use Hi-Fi tracks and two use normal longitudinal tracks. The Hi-Fi mode provides a superb 90 dB dynamic range and a wide frequency response for high-quality sound reproduction. XLR type connectors are used for the inputs and outputs for all four channels, allowing direct connection to professional audio products.
  • In addition to assemble and insert edit functions, audio split editing capability with normal longitudinal audio CH-1/CH-2 is also available. In the insert mode, video, audio and time code can be inserted independently or in any combination. In the assemble mode, all of the prerecorded signals are erased and replaced with new signals.
  • Generation and reading of SMPTE standard LTC and VITC is built in. LTC can be recorded on the longitudinal normal audio CH-2 track to identify the absolute address of a frame. VITC is recorded in the vertical blanking interval of the video signal. This is especially useful for identification of Time Code in slow or still playback mode. VITC also permits both normal audio channels to be used simultaneously.
  • Power consumption: 60W
  • Operating temperature: 5 to 40o C (41 to 104o F)
  • Video signal: NTSC (color)/EIA (monochrome)
  • Video recording system: Rotary two-headed helical scanningLuminance: FM recordingChrominance: Converted subcarrier direct recording
  • S/N ratio: More than 47 dB (in S-VHS/VHS mode)
  • Horizontal resolution: S-VHS: More than 400TV linesVHS: More than 240TV lines
  • Frequency response: Normal: 50 Hz to 12kHzHi-Fi: 20 Hz to 20kHz
  • Dynamic range: More than 90dB (in Hi-Fi mode)
  • Power requirements: AC 120V, 60Hz, 3 wire grounded receptacle
  • F FWD and REW time: Approx 2.5 min (with MQST-120)
  • Tape Speed: 33.35 mm/s (SP mode only)
  • Inputs: REF VIDEO IN (BNCx2, loop through): Black burst or 1.0Vp-p, 75 unbalanced, sync negativeCOMPOSITE IN (BNC x 2, loop through): 1.0Vp-p, 75, unbalanced, sync negativeS-VIDEO IN (Mini DIN 4-pin)Y: 1.0Vp-p, 75, unbalanced, sync negativeC: 0.286Vp-p (burst), 75, unbalanced
  • Outputs: COMPOSITE OUT (BNC): 1.0Vp-p, 75, unbalanced, sync negativeS-Video Out (Mini DIN 4-pin x 2)Y; 1.0Vp-p, 75, unbalanced, sync negativeC; 0.286Vp-p (burst), 75, unbalancedCOMPONENT OUT (BNC x 3, with optional SVBK-170);Y; 1.0Vp-p, 75, unbalanced, sync. NegativeR-Y; 0.7Vp-p, 75, unbalancedB-Y; 0.7Vp-p, 75, unbalancedVIDEO MONITOR OUT (Super) (BNC)1.0Vp-p, 75, unbalanced, sync negative
  • TBC REMOTE: 15-pin multi
  • REMOTE: 9-pin multi, SMPTE RS-422A standards
  • WIRED SIRCS: Control-S (Power supplied type)
  • Tape Format: S-VHS or VHS
  • Inputs:: Normal Ch-1/2 (XLR): +4/0/-6dBm selectable, 600, balancedHi-Fi CH-1/2 (XLR): +4/0/-6dBm selectable, 600, balanced
  • S/N ratio (Normal audio at 3% distortion, Dolby, OFF): More than 43dB
  • Time CODE IN (BNC):: 0dBu6dB, 10k, unbalanced (0dBu=1.55Vp-p PULSE)
  • TIME CODE OUT (BNC):: 0dBu3dB at 10k load, unbalanced (0dBu=1.55Vp-p PULSE)
  • Search speed (with optional SVRM-100A): SHUTTLE:STILL,1/30,1/10,1/5,1/2,1,2,10 times normal speed, forward and reverse JOG: Frame by frame, forward and reverse
  • Outputs: COMPOSITE OUT (BNC): 1.0Vp-p, 75, unbalanced, sync negativeS-Video Out (Mini DIN 4-pin x 2)Y; 1.0Vp-p, 75, unbalanced, sync negativeC; 0.286Vp-p (burst), 75, unbalancedCOMPONENT OUT (BNC x 3, with optional SVBK-170);Y; 1.0Vp-p, 75, unbalanced, sync. NegativeR-Y; 0.7Vp-p, 75, unbalancedB-Y; 0.7Vp-p, 75, unbalancedVIDEO MONITOR OUT (Super) (BNC)1.0Vp-p, 75, unbalanced, sync negative
  • Outputs: Normal CH-1/2 (XLR):+4/0/-6dBm selectable at 600 load, low impedance balancedHi-Fi CH-1/2 (XLR):+4/0/-6dBm selectable at 600 load, low impedance, balancedAUDIO MONITOR OUT (PIN):-5dBu, at 47 load, unbalancedHEADPHONE OUT (STEREO PHONE): -50 to -18dBu at 8 load unbalanced
