• Panasonic AG-DV2500 Professional DV Compact Editing VTR

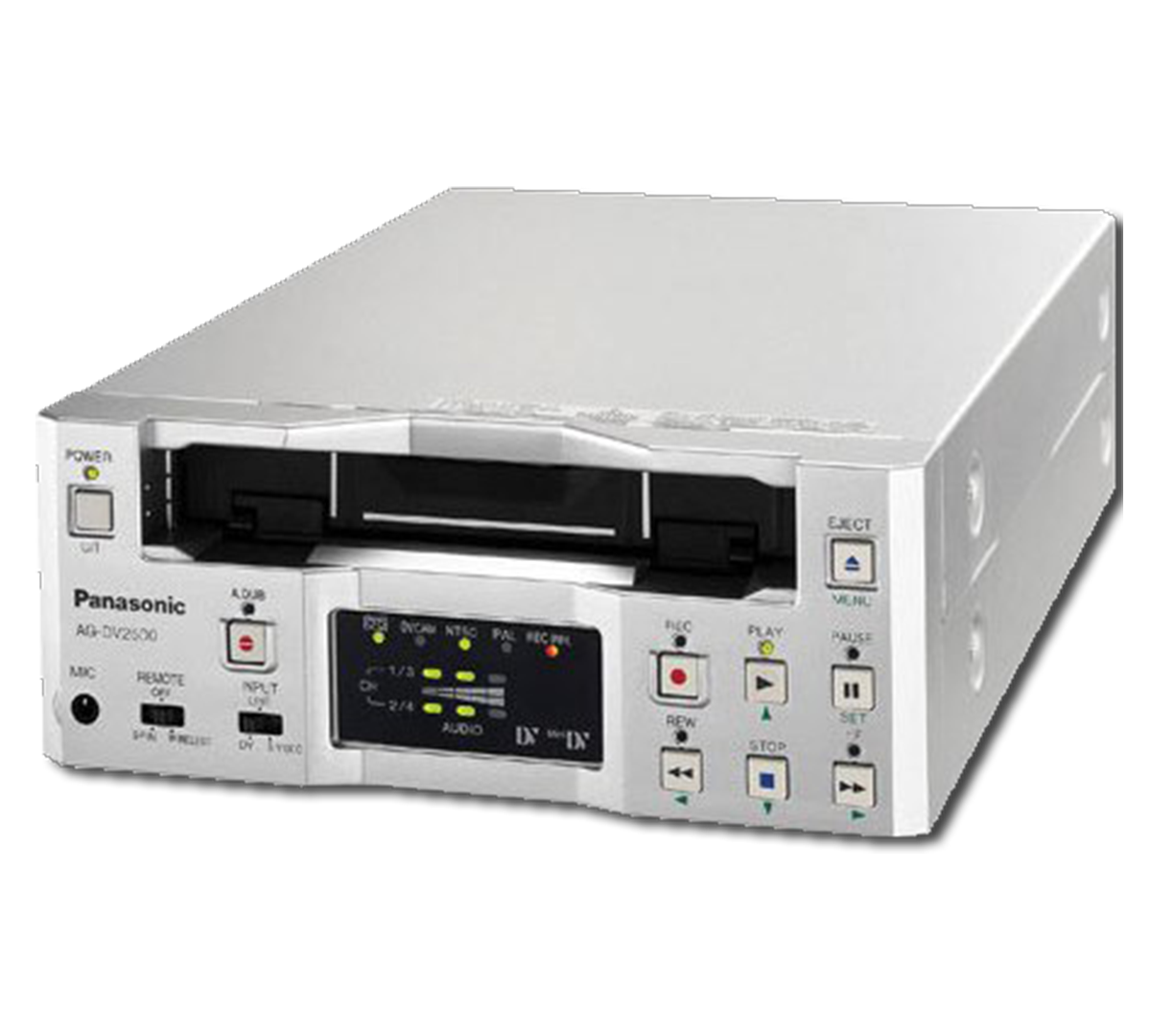

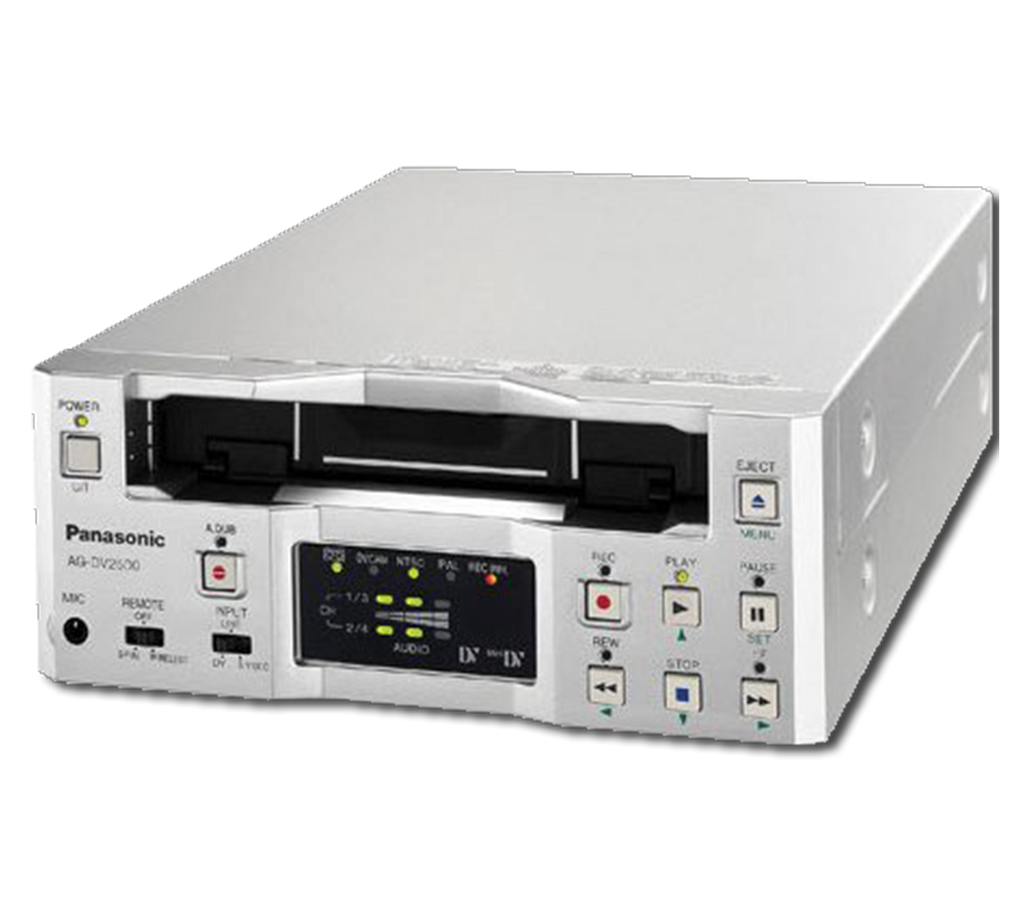

Panasonic AG-DV2500 Professional DV Compact Editing VTR
Move your mouse over image or click to enlarge

Panasonic AG-DV2500 Professional DV Compact Editing VTR

$ 989.99



Save valuable time, energy and space with the Panasonic AG-DV2500 studio player/recorder. The machine plays and records in the ubiquitous DV format, both large cassette and small. It will play back professional DVCAM recorded tapes. It can be remotely controlled with RS-422 controllers. And it can take up a small footprint on your desk when standing on its side with the included tower stand.

Up to 4 1/2 Hours Recording Time

The AG-DV2500 is a no-nonsense DV edit deck, perfect for almost any modern digital edit studio. The machine will accept any size DV cassette including Panasonic's AY-DV276MQ Master tape with over 4 1/2 hours of recording time.

DVCAM Playback

Panasonic asserts that the AG-DV2500 will playback professional DVCAM recorded tapes. Now you won't have to buy or rent expensive equipment to integrate DVCAM source material to your project for editing.

PAL / NTSC Playback Capability

Both NTSC and PAL signals can be played back. This makes it easy to work with international material and transfer to a non-linear editing system for editing.

Synchro Lock Function

The AG-DV2500 can be linked to the recording start/stop operation of the Panasonic AG-DVX100 camcorder for back-up or dub recording. The deck can automatically start recording 5 minutes before the end of the camera's tape for extended recording times. The deck may also be used as the sole recorder in liu of the camera's recorder.


Video Recording System

DV system (SP mode only)

Video Signal System



Standard/ mini DV cassette

Tape Width


Tape Speed

18.812 mm/sec. (NTSC)

18.831 mm/sec. (PAL)

Recording / Playback Time

276 minutes (DV276)

63 minutes (DVM63)

FF / REW Time

About 3 minutes (DV276)

About 1 minute (DVM63)

DV Interface

Input/output : IEEE1394


Recording Format

8 bit, 13.5MHz,

4:1:1 (NTSC)

4:2:0 (PAL)

Video Input

LINE (composite):

   1.0V (p-p), 75 ohm unbalance



   1.0V (p-p), 75ohm unbalance



   0.286V (p-p) (NTSC) /

   0.3V (p-p) (PAL)

   75 ohm unbalance

Video Output

LINE (composite):

   1.0V (p-p), 75 ohm unbalance



   1.0V (p-p), 75ohm unbalance



   0.286V (p-p) (NTSC) /

   0.3V (p-p) (PAL)

   75 ohm unbalance


Recording Format

16 bit, 48kHz, 2 channels

PCM audio/12 bit, 32kHz,

4-channel PCM audio

Number of Track

2 (16 bit,4 8kHz) /

4 (12 bit, 32kHz)

Audio Input

–8dBu, 10 kohm unbalance

Mic Input

–60dBu, 3 kohm unbalance

Audio Output

–8dBu, 1 kohm unbalance

Frequency Characteristics

20Hz to 20kHz (48kHz)

* 0 dBu = 0.775Vrms


Power Source

DC12V (supplied via the provided AC adapter)

Power Consumption

14 watts, 1.17A
AC Adapter

AC 100V to 240V, 50Hz/60Hz.

Power Consumption: 1.0A to 0.5A
Output: DC 12V, 3.5A


6.9" (W) x 2.7" (H) x 10.2" (D)

(174 X 68 X 260 mm)

Dimensions exclude protruding parts, e.g., foot)

Operating Temperature

5°C - 35°C (41°F - 95°F)

Operating Humidity

30% - 80%

Storage Temperature

-4°F - 60°F (-20°C - 60°C)


5.07 lbs. (2.3 kg)
