Sony XDCAM Recorder - Field Recorder - HD422 - Sony PDW-HR1/MK1
Move your mouse over image or click to enlarge
Sony XDCAM Recorder - Field Recorder - HD422 - Sony PDW-HR1/MK1 Sony XDCAM Recorder - Field Recorder - HD422 - Sony PDW-HR1/MK1 Sony XDCAM Recorder - Field Recorder - HD422 - Sony PDW-HR1/MK1

Sony XDCAM Recorder - Field Recorder - HD422 - Sony PDW-HR1/MK1

$ 3,889.99

Quantity

Details

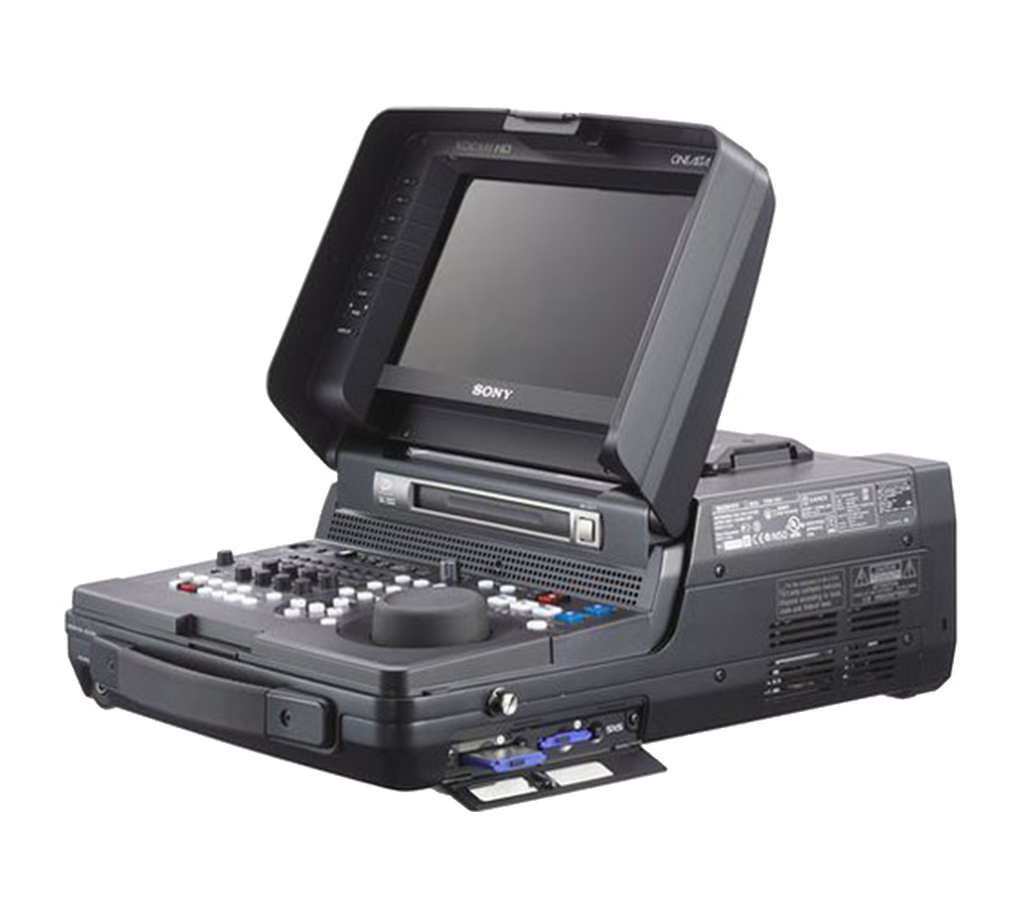

The Sony PDW-HR1/MK1 is a portable recorder for Sony's high-end XDCAM HD422 format. The recorder accepts both dual and single-layer professional discs and can record in a variety of different settings. This version comes pre-installed with the PDBK-MK1 SxS Card option, which adds two ExpressCard slots and allows you to also review footage captured to SxS Card media. With its 9" LCD viewer and built-in stereo speaker--and ability to be powered using IDX batteries--this lightweight, mobile deck is ideal for field recording.

  • HD recording at up to 50 Mb/s using MPEG HD422
  • Support for existing XDCAM HD and XDCAM SD formats as standard
  • 1080i and 720P recording
  • Dual-layer disc (50 GB, PFD50DLA) and single-layer disc (23.3 GB, PFD23A) support
  • Long recording time (at 50 Mb/s): approximately 95 minutes on dual-layer disc and 43 minutes on single-layer disc
  • Thumbnail operation
  • Proxy data and metadata recording
  • Built-in up-conversion to HD from SDI input when recording
  • HD/SD conversion and cross conversion between 1080 and 720 at the output during playback
  • Multi-format compact HD/SD Recorder
  • Video format (4:2:2 HD 1080 50i, 59.94i)
  • High-quality eight-channel audio recording

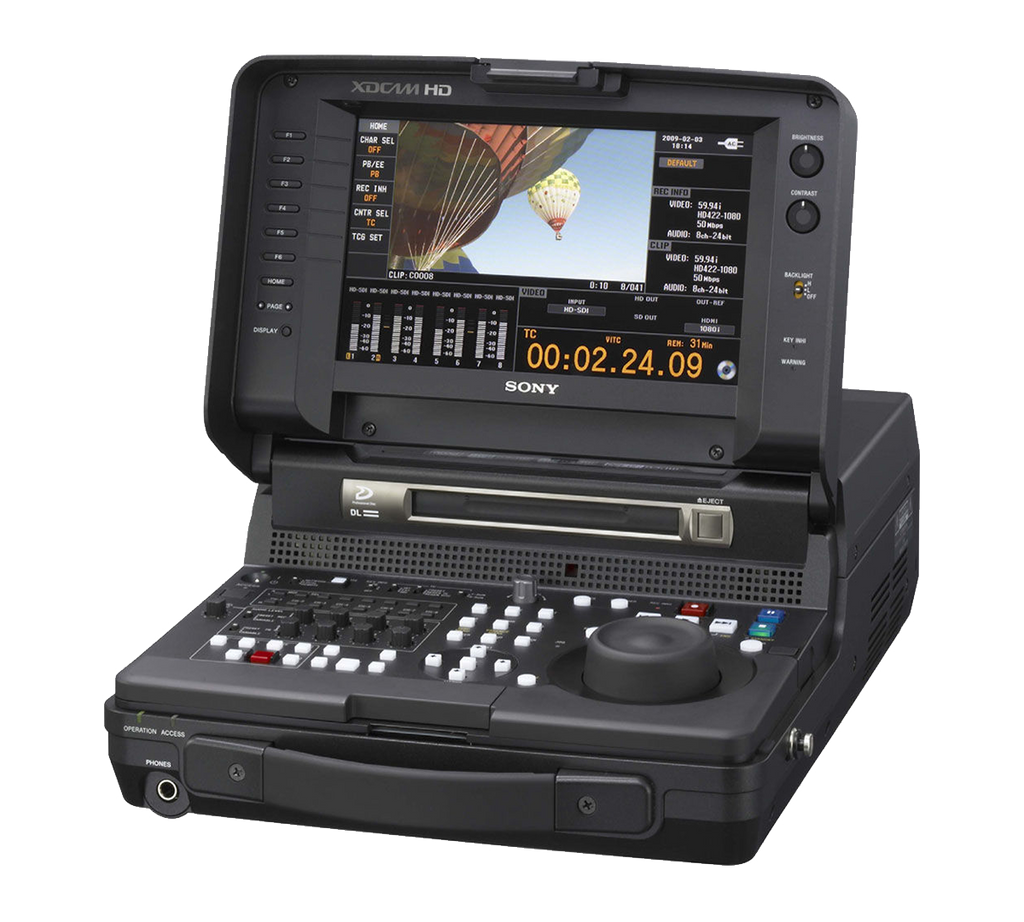

  • 9"-type color LCD display
  • VTR-like jog/shuttle operation
  • Video control (via front panel and remote)
  • Compact and lightweight
  • AC, DC, or battery powered
  • Ethernet interface
  • i.LINK interface
  • HDMI output for viewing
  • DVB-ASI output by PDBK-202 option
  • Key panel illumination light for use in low-light environments
  • Clip Continuous Recording
  • Direct FTP copy function
Application XDCAM HD422 Recording/Playback
LCD 9"
Formats Video
MPEG HD422 (CBR: 50 Mb/s)
MPEG HD: HQ mode (VBR, maximum bit rate: 35 Mb/s)
SP mode (CBR, 25 Mb/s)
LP mode (VBR, maximum bit rate: 18 Mb/s) (Playback only)
MPEG IMX (CBR, 50/40/30 Mb/s)
DVCAM (CBR, 25 Mb/s)



Proxy Video
MPEG-4

Audio
MPEG HD422: 8 ch/24 bits/48 kHz
MPEG HD: 4 ch/16 bits/48 kHz
MPEG IMX: 4 ch/24 bits/48 kHz or 8 ch/16 bits/48 kHz
DVCAM: 4 ch/16 bits/48 kHz

Proxy Audio
A-law (8 ch/8 bits/8 kHz)

Search Speed Range Jog mode: -1 to +1 times normal speed
Variable mode: -1 to +1 times normal speed
Shuttle mode: -20 to +20 times normal speed
F.Fwd/Rev: -20 to +20 times normal speed

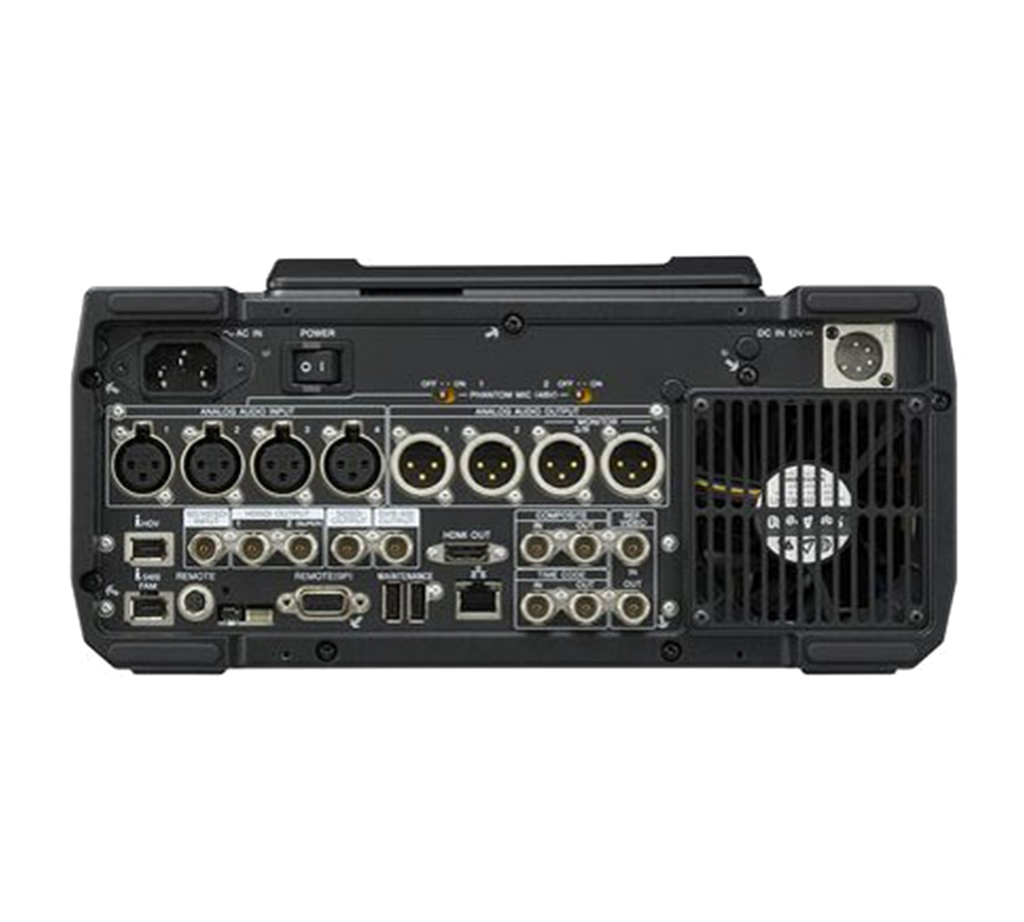

Inputs/Outputs Composite: BNC (x1 Input, x1 Output)
HD-SDI: BNC (x1 Input, x2 Output)
HDMI (x1 Output)
Reference: BNC (x2 Input)
Analog Audio: XLR 3-Pin, Female (x4 Input, x4 Output)
Timecode: BNC (x1 Input, x1 Output)
Headphone: Stereo MiniJack
i.LINK/FireWire: 6-Pin (x2)
Ethernet: RJ-45 1000-BaseT
DVB-ASI (x1 Output)
Remote: RS-422A, 9-Pin (x1 Input/Output)
USB: USB 2.0 (x2)
Audio Capabilities Sampling Frequency: 48 kHz
Quantization: 24 bits
Frequency Response: 20 Hz to 20 kHz +0.5/-1.0 dB (0 dB at 1 kHz)
Dynamic Range: More than 90 dB
Distortion: Less than 0.05% (at 1kHz)
Headroom: 20/18/16/12 dB (selectable)
Speaker Built-in (x2), L/R
Operating Temperature 23-113°F (-5-45°C)
Power Requirements 100-240VAC, 50/60 Hz
12VDC
Power Consumption VAC: 65W
VDC: 55W
Dimensions (WxHxD) 11.9 x 5.2 x 15.8" (30 x 12.9 x 40cm)
Weight 16.3 lbs (7.4kg)
